GB/T16491-1996 Universal Testing Machine Computer Servo Type Display Test Stand With 0.5 Grade Accuracy 20 Ton

Name: GBT164911996 Universal Testing Machine Computer Servo Type Display Test Stand With 05 Grade Accuracy 20 Ton
Brand: lixian
Price: 1 USD

China GB/T16491-1996 Universal Testing Machine Computer Servo Type Display Test Stand With 0.5 Grade Accuracy 20 Ton wholesale

Brand Name : lixian

Model Number : HZ-1001

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200sets/ month

Delivery Time : 7 days

Packaging Details : Standard safety export woodcase

Max load : 20ton

Product name : Computer Servo-typeUniversal TestingMachine

Resolution : 1/250000

Load cell : Basic configuration：one piece( max load)

Range of testing speed : 0.001~500mm/min

Accuracy of displacement measurement : Tolerance: ±0.5%/ tolerance: ±0.2%

Test standard : ASTM D412, ASTM D638, ISO37 etc

Accuracy : 0.5grade

fixture : A set of tensile fixture

Power supply : 220V, 50HZ

Model : HZ-1001

Contact Now

Universal Testing Machine GB/T16491-1996 Computer Servo-Type Display Test Stand With 0.5 Grade Accuracy 20ton

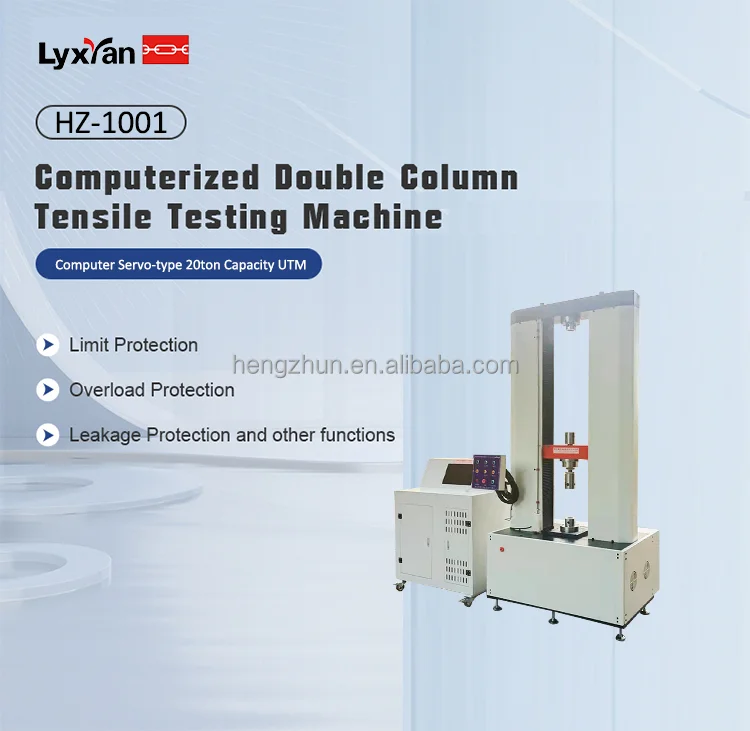

HZ-1001 Computer Servo-type Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement.

Universal Testing Machine This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 20ton.

Specification

Model Number	HZ-1001
Power	Electronic
Product name	Computer Servo-typeUniversal TestingMachine
Maximum load	20ton option
Accurate grade	1 grade /0.5 grade
Measuring accuracy	Display the value ±1%/Display the value±0.5%
Range of testing speed	0.001~500mm/min
Accuracy of displacement measurement	Tolerance: ±0.5%/ tolerance: ±0.2%
Testing platform moving device	Fast /slow two speeds to control,can jog
Overload protection	Overload 10%,automatic protection
Fixture	A set of tensile fixture
Power supply	220V, 50HZ

GB/T16491-1996 Universal Testing Machine Computer Servo Type Display Test Stand With 0.5 Grade Accuracy 20 Ton

UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23year.
